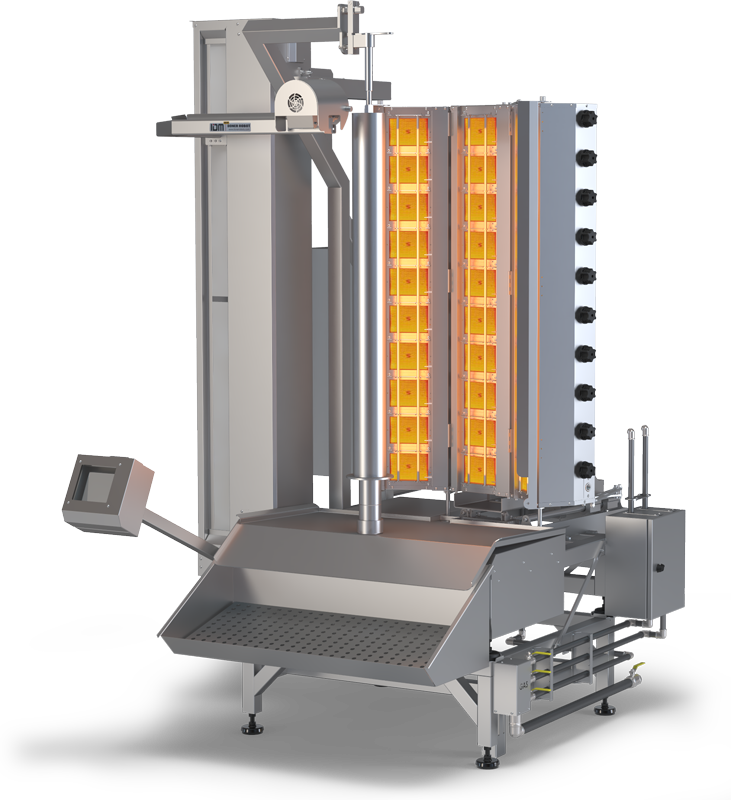

350kg New Generation Doner Robot

Max. doner kebab size: 62cm x 110 cm
Package size: 120x120x200 cm
Opsiyonel Özellikler
Genel Özellikler

Hygienic and untouched cutting.
24-hour working feature.
Standardization in production
Ability to make precise and continuous doner cutting in the desired thickness.
Design suitable for conveyor belt transfer.
Possibility to control it remotely thanks to the remote.
Detachable meat cutting knife.
Wide cut possibility.
Doner kebab rotisserie bearing mechanism to prevent motor damage.
Emergency stop button for safety.
Automatic, doner follow-up feature of the oven.
Adjustable wings that allow easy cleaning of doner cooker.
Long-lasting radian and wires.
Safety valve taps.
Low energy consumption.
Return of the investment in a short time.

Doner Kebab Robot
Robot size (WxDxH): 26x113x213cm
Daily cutting capacity: 350 Kg
Power Consumption
Voltage:110-220v AC
Current: 12A-6A
Power: 1300W
Working Limits
Doner Kebab Diameter: 62 cm
Doner Kebab Height: 110 cm
Cutting thickness (mm): 0,25mm-8mm
Doner kebab Cutting Types (Maximum Inclination): Straight Conical 5 °
Standard Table
Table (WxDxH): 87x85x33cm
Gas Burner
Number of Radians - Model: 3R-09
Burner power: 54 kW
Rated pressure (Pn): 60mbar
kW- LPG: 5,78m³/h
kW- NG: -
Injector (NG): 1,1mm
Injector (LPG): 0,8 mm
Furnace dimensions (WxDxH): 91x53x121cm
Flat Doner Kebab Mold
Mold dimensions: 69x69x120cm (By car)
Doner diameter and height: 62cm x 110cm
Shaft / Tube: 20x20 mm
Bottom disc and shaft set: Compatible with robot
Trolley: +
Top cover: -
Equipment Technical Data Sheet
Bottom plate 1: 4mm 61cm
Bottom plate 2: 4mm 51cm
Bottom plate 3: 4mm 41cm
Bottom plate 4: 4mm 31 cm
Bottom plate 5: 4mm 21 cm
Bottom plate 6 (Shaft welded flange): 18 cm
Shaft size:20x20 mm
Shaft length: 134,3cm
Tube length: -
Flange height: 6 cm
Lifte support: +
